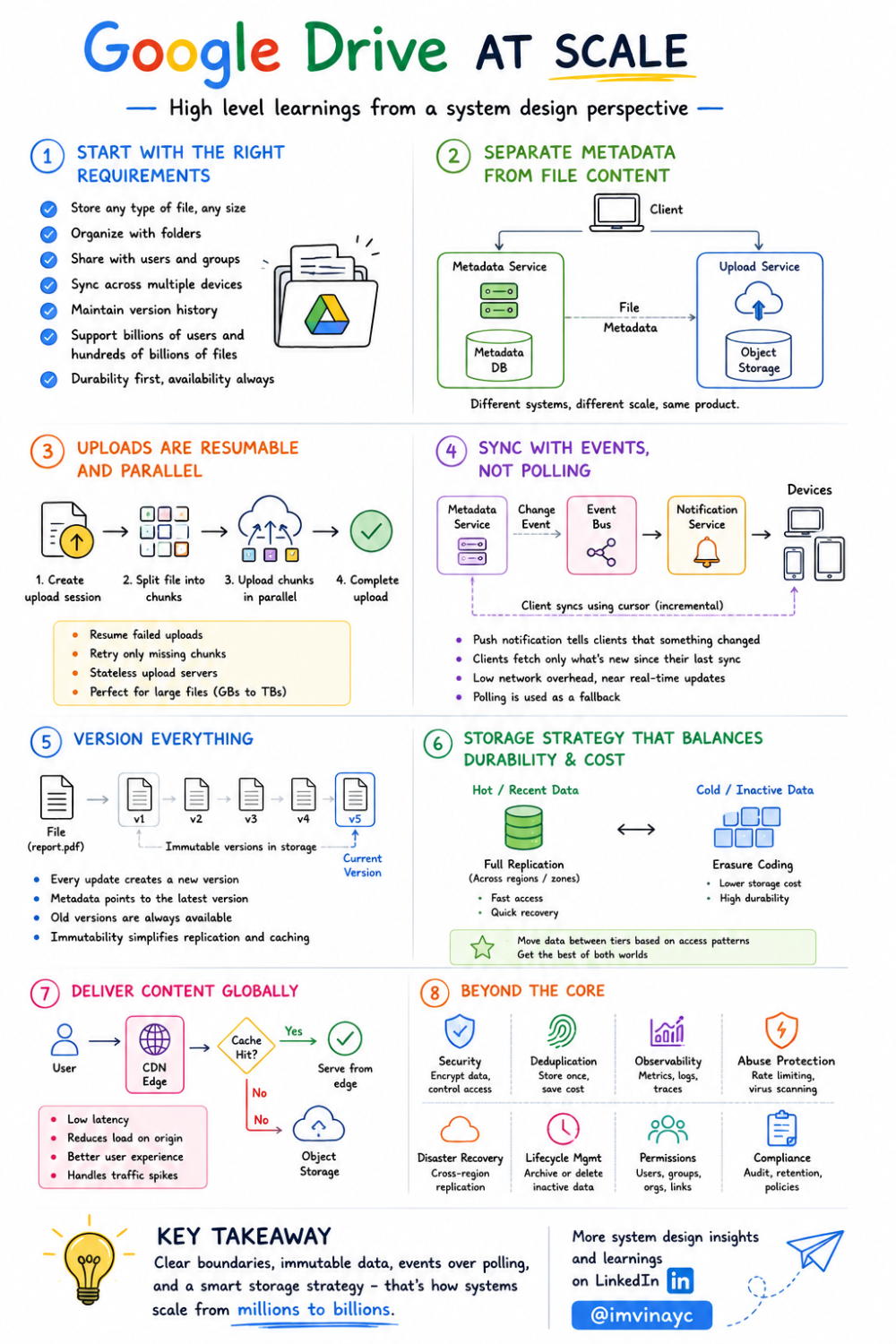

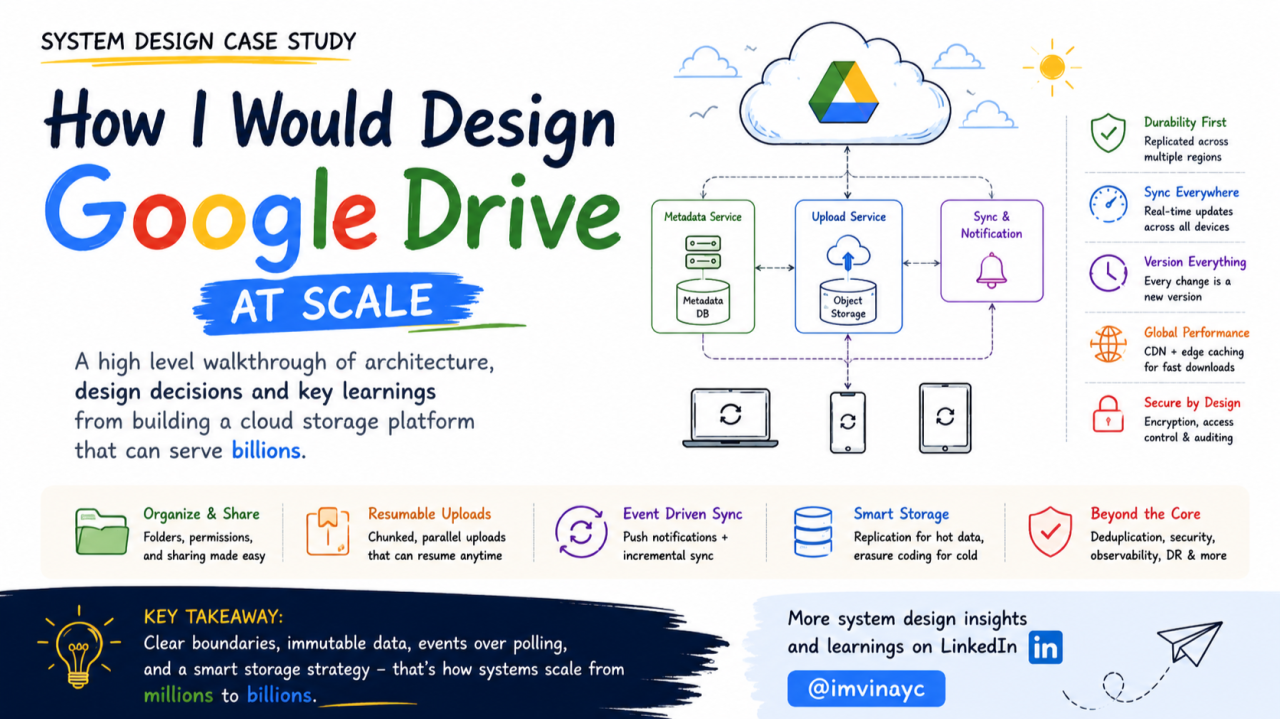

Google Drive - System Design - By Vinay C - infographic

System design discussions often drift into naming tools. I prefer starting from the product behavior and letting the architecture follow from that.

This isn’t Google’s actual implementation. It’s how I would approach designing a system like Google Drive based on the requirements and tradeoffs we discussed.

Requirements

At a high level, the system should support:

Upload and download files of any size (KBs to 100s of GBs)
Organize files into folders
Share files with users or groups
Synchronize changes across multiple devices
Maintain version history
Handle billions of users and hundreds of billions of files
Provide high durability (data loss is unacceptable)
Remain available even during partial failures

Core Idea: Separate Metadata from File Content

The first decision that simplifies everything else is separating metadata from actual file bytes.

Metadata includes:

File name
Owner
Folder hierarchy
Permissions
Current version pointer
Size, timestamps

File content is stored separately in object storage.

 Client
                   |
          +--------+--------+
          |                 |
   Metadata Service    Upload Service
          |                 |
    Metadata DB      Object Storage

This separation allows:

Metadata to be optimized for low-latency queries
File storage to be optimized for throughput and durability

Trying to combine both in one system usually leads to compromises.

Metadata Storage: SQL vs NoSQL

Metadata access patterns are structured and relational:

List files in a folder
Check permissions
Update version pointers
Maintain consistency during updates

Because of this, I would lean toward a distributed SQL database (like Spanner, CockroachDB, or a sharded MySQL setup).

Why SQL:

Strong consistency for operations like rename, move, and version updates
Support for transactions (important for multi-step updates)
Easier to enforce constraints (e.g., folder hierarchy)

A document store like MongoDB could work, but handling relationships (folders, permissions, sharing) becomes more complex over time.

Sharding Strategy

At this scale, metadata cannot live in a single database.

I would shard primarily by owner (userId).

Shard A → Users 1–10M
Shard B → Users 10M–20M

Why user-based sharding:

Most operations are user-scoped (list my files, upload my file)
Reduces cross-shard queries
Keeps folder hierarchy localized

What about shared files?

Sharing introduces cross-user access. Instead of duplicating metadata across shards:

Keep the file owned by the original user’s shard
Maintain a separate permission index to map users → accessible files

This avoids consistency issues from duplication.

Permissions Model

Permissions are more complex than they look.

A simple structure could be:

Permission
-----------
resourceId (file/folder)
principalId (user/group)
role (viewer/editor/owner)

Key considerations:

Support both user-level and group-level sharing
Inheritance from folders (files inherit folder permissions)
Efficient lookup: “what files can user X access?”

To support fast queries, I would:

Store permissions separately from file metadata
Maintain indexes for reverse lookups (user → files)

Caching frequently accessed permissions is also important to reduce DB load.

Upload Flow (Handling Large Files)

Uploading large files in one request is not practical.

Instead:

Client requests an upload session
Server returns:
Client splits file into chunks
Uploads chunks in parallel
Server tracks uploaded chunks
Client completes upload

Benefits:

Resume uploads after failure
Retry only failed chunks
Parallel uploads improve throughput

Client

Chunk1 ─────► Upload Service ─────► Object Storage
Chunk2 ─────► Upload Service ─────► Object Storage
Chunk3 ─────► Upload Service ─────► Object Storage

Stateless Upload Service

Upload servers should not store state in memory.

Upload session state is stored in a durable store:

UploadSession
--------------
uploadId
chunkStatus
expiry

This allows any server to continue the upload if another fails.

Data Integrity

Each chunk should include a checksum.

Flow:

Client computes checksum
Server verifies after upload
Rejects corrupted chunks

This prevents silent data corruption during transfer.

Finalizing Upload

Once all chunks are uploaded:

Object storage finalizes the object (multipart compose)
Metadata service creates a new file version
File record is updated to point to the latest version

Important: metadata is updated only after successful upload completion.

Versioning

Instead of overwriting files, every update creates a new version.

File
   |
Current Version → Version 5
                     |
                Object Storage

Benefits:

Easy rollback
No risk of partial overwrite
Simplifies caching and replication

Synchronization Across Devices

Polling every few seconds doesn’t scale.

Instead, I would use:

Push notifications for active devices
Cursor-based incremental sync

Metadata Service
        |
    Event Bus
        |
Notification Service
        |
 Connected Devices

When a change happens:

Metadata service emits an event
Notification service pushes a lightweight signal
Client calls sync API with last cursor

GET /sync?cursor=12345

Server returns only changes after that cursor.

Why cursor instead of timestamps?

Avoid clock skew issues
Maintain strict ordering
Easier pagination

Conflict Handling

If two devices edit the same file offline:

Both edits are based on the same version
First upload succeeds
Second upload detects version mismatch

Instead of overwriting:

Create a conflict copy (e.g., “file (conflict).pdf”)

For binary files, merging is not practical.

Object Storage Design

File content is stored as immutable objects, meaning once a file (or chunk of a file) is written, it is never modified in place. Any update results in a new object being created, and metadata is updated to point to the latest version. This approach simplifies consistency, enables efficient caching, and makes replication and recovery much easier.

Requirements:

High durability: Data should survive hardware failures, disk corruption, and even regional outages. This is typically achieved through replication across multiple availability zones or regions, and in some cases, erasure coding for long-term storage efficiency.
High throughput: The system should support large uploads and downloads, often in parallel. This requires optimized read/write paths, streaming support, and the ability to handle many concurrent requests without bottlenecks.
Low cost: Since storage grows continuously, cost efficiency becomes critical. Techniques like tiered storage (hot vs cold data), compression, and transitioning older data to erasure-coded formats help reduce long-term storage expenses without compromising durability.

Replication

For newly uploaded or frequently accessed data, replication is the simplest and most reliable approach.

Zone A
Zone B
Zone C

Each object is stored in multiple zones so that even if an entire zone goes down, the data remains available. This protects against disk failures, machine failures, and zone-level outages while keeping read latency low.

Erasure Coding

For data that is accessed less frequently, storing multiple full copies becomes expensive. Instead, the data can be broken into smaller pieces and combined with additional parity pieces.

These pieces are distributed across different storage nodes. Even if some pieces are lost, the original data can still be reconstructed using the remaining ones.

This approach significantly reduces storage overhead compared to keeping full replicas.

Tradeoffs:

Recovery takes longer because data needs to be reconstructed
Additional CPU and network resources are required during reconstruction

Downloads and CDN

Serving all downloads from origin storage doesn’t scale.

Introduce CDN selectively:

Client
   |
 CDN Edge
   |
Object Storage

I wouldn’t put every file behind the CDN. It makes sense mainly for:

Publicly shared files (e.g., links accessed by many users)
Frequently downloaded content (hot files)
Large media files where latency matters (videos, images)

For private or rarely accessed files, serving directly from object storage is more cost-efficient.

Benefits of using CDN for the right subset:

Lower latency for global users
Reduced load on storage during traffic spikes
Better handling of viral or highly shared content

Since objects are immutable, caching remains straightforward and avoids consistency issues.

Deduplication (Optional Optimization)

Many users upload identical files.

We can:

Compute content hash
Store only one copy
Multiple metadata entries point to same object

Tradeoff:

Extra compute during upload
Complexity in reference counting

Security

At this scale, security is not optional, and it needs to be built into every layer of the system rather than added later.

TLS for all communication between clients and services
Encryption at rest for stored objects and metadata
Strict access checks on every request based on permissions
Audit logs for file access and sharing actions
Regular key rotation and secure key management
Protection against abuse (rate limiting, malware scanning)

Observability and Reliability

To operate this system:

Metrics: upload latency, error rates, sync delays
Logs: request tracing
Alerts: failures, anomalies

Also:

Cross-region replication
Backup validation
Disaster recovery drills

Final Thoughts

What stands out to me is that most complexity comes from scale and failure handling, not from the core idea.

A few decisions simplify everything:

Separate metadata from file storage
Use resumable uploads
Keep objects immutable
Use event-driven sync instead of polling
Shard based on user ownership

Once these are in place, the system can grow without needing a redesign.
